REX 770 GEARBOX CONNECTION TO HYDRAULIC MOTOR
GEARBOX TO MOTOR SPLINED COUPLER
102-08529-01..20-23 SPLINE
102-10072-01..20-20 SPLINE
102-08299-01..23-23 SPLINE
42021..20-21 SPLINE
42321..21-23 SPLINE

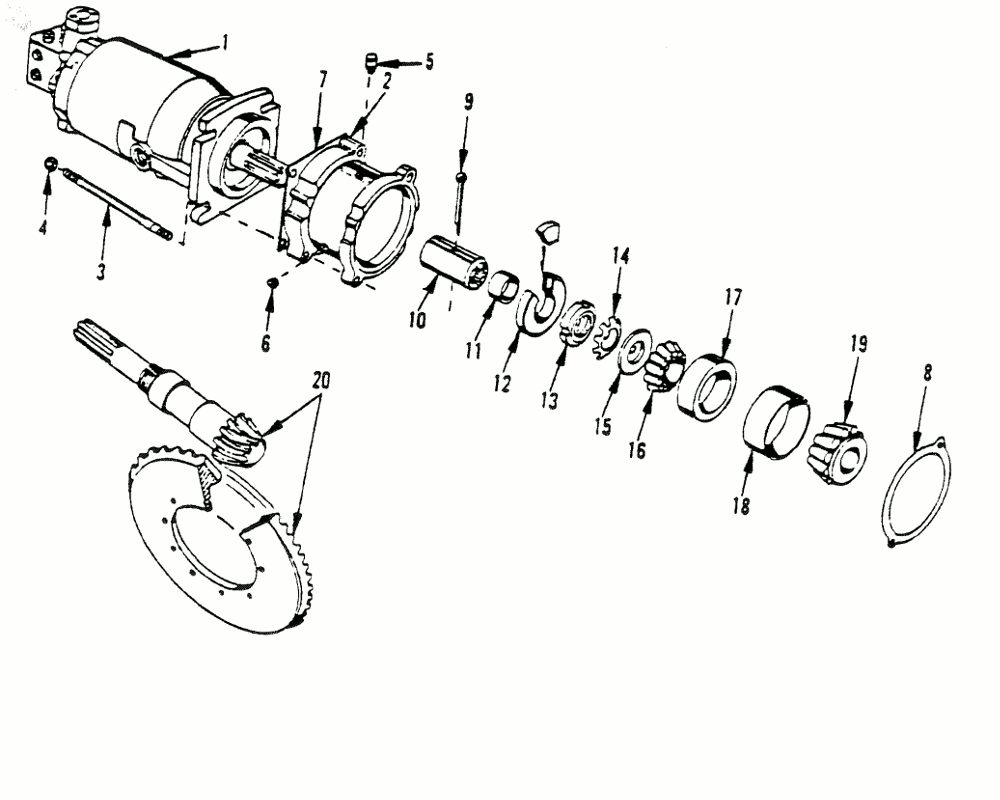

CLICK IMAGE FOR EXPANDED VIEW
| REX 770 MOTOR CONNECTION | ||||
|---|---|---|---|---|
| ITEM # | PART NUMBER | PART DESCRIPTION...... | KIT | QUANTITY |
| 1 | REFERENCE ONLY | HYDRAULIC MOTOR | . | 1 |
| 2 | 402-01667-02 | FLANGE | . | 1 |
| 3 | 102-10957-01 | STUD | . | 4 |
| 4 | 298-02063-71 | FLANGED LOCK NUT | . | 4 |
| 5 | 298-13006-86 | AIR VENT | . | 1 |
| 6 | 398-14010-31 | PLUG | . | 2 |
| 7 | 102-01781-01 | GASKET | * | 1 |
| 8 | 102-08988-01 | GASKET | * | 1 |
| 9 | 398-03000-19 | COTTER PIN | . | 1 |
| 10 | 102-08299-01 | COUPLING-23 SPLINE | . | 1 |
| 10 | 102-08529-01 | COUPLING-23-20 SPLINE | . | 1 |
| 10 | 102-10072-01 | COUPLING-20 SPLINE | . | 1 |
| 10 | 42021 | COUPLING-20-21 SPLINE | . | 1 |
| 10 | 42321 | COUPLING-23-21 SPLINE | . | 1 |
| 11 | 298-05013-08 | WEAR SLEEVE | * | 1 |
| 12 | 298-03103-68 | OIL SEAL | * | 1 |
| 13 | X6202 | LOCK NUT | . | 1 |
| 14 | 298-06003-97 | LOCK WASHER | . | 1 |
| 15 | 298-00028-97 | KEYED WASHER | . | 1 |
| 16 | 298-00310-02 | CONE GEARING | ** | 1 |
| 17 | 298-00309-02 | CUP BEARING | ** | 1 |
| 18 | 298-00307-02 | CUP BEARING | ** | 1 |
| 19 | 298-00308-02 | CONE BEARING | ** | 1 |
| 20 | 502-04709-80 | SPIRAL BEVEL GEAR | . | 1 |
