REX GEARBOXES & PARTS 877-278-1098
FRONT WATER INJECTION

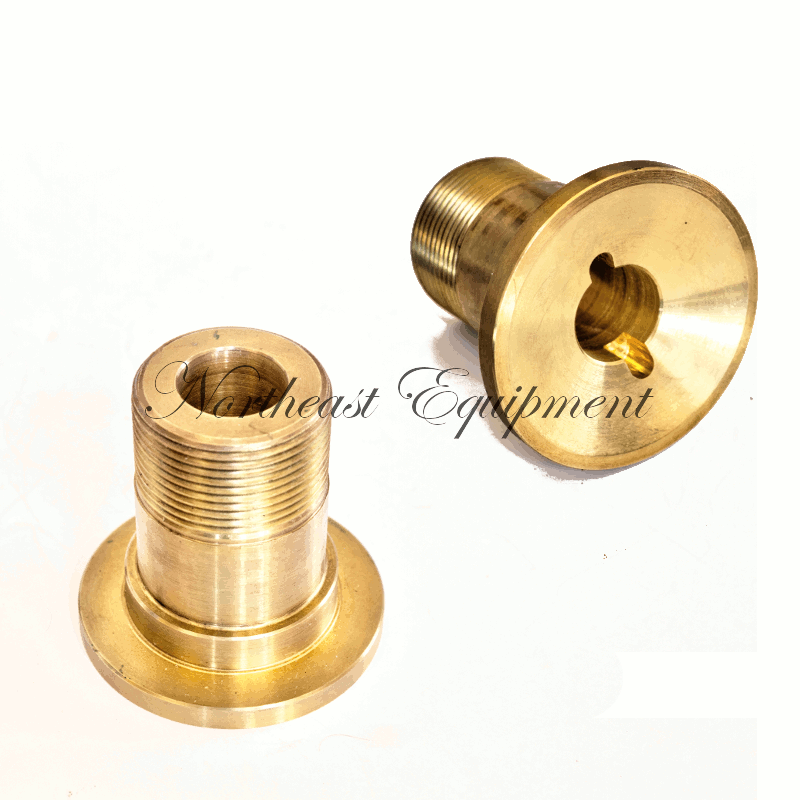

402-00695-02
402-00695-02 REX GEARBOX FRONT WATER INJECTION BUSHING, BRASS
$58.00
102-00747-01
102-00747-01 REX GEARBOX FRONT WATER INJECTION DONUT SEAL
$6.50

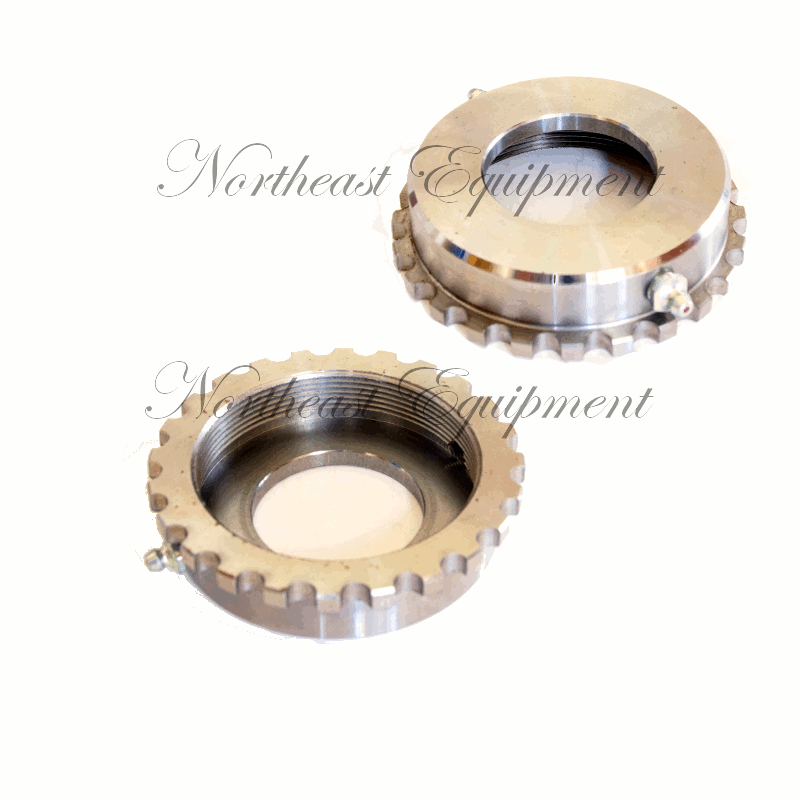

402-01529-02
402-01529-02 REX GEARBOX FRONT WATER INJECTION CAP
$55.20

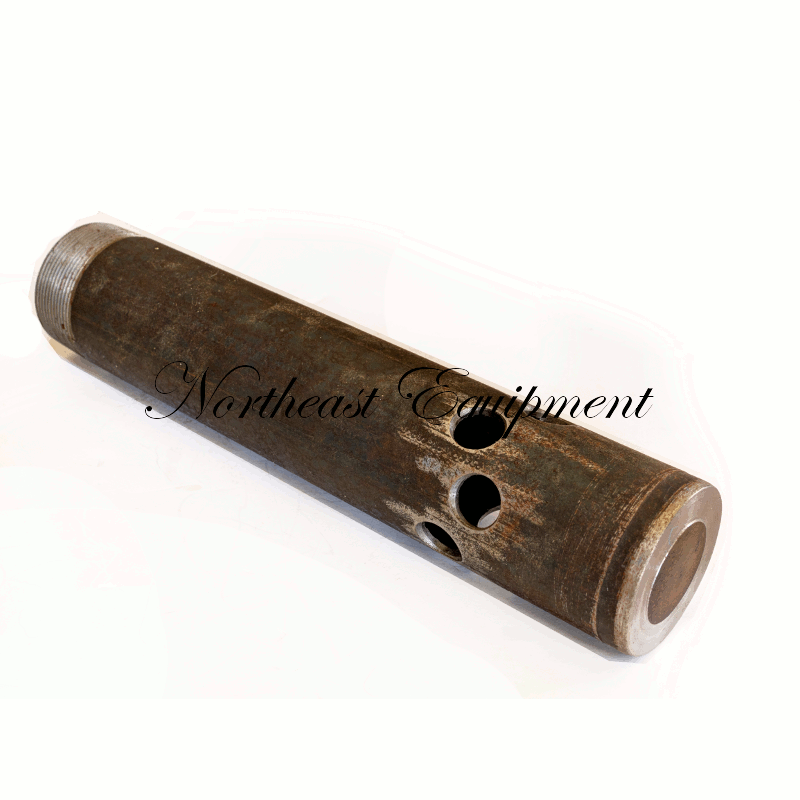

502-01999-80
502-01999-80 REX GEARBOX FRONT WATER INJECTION NOZZLE
$25.95

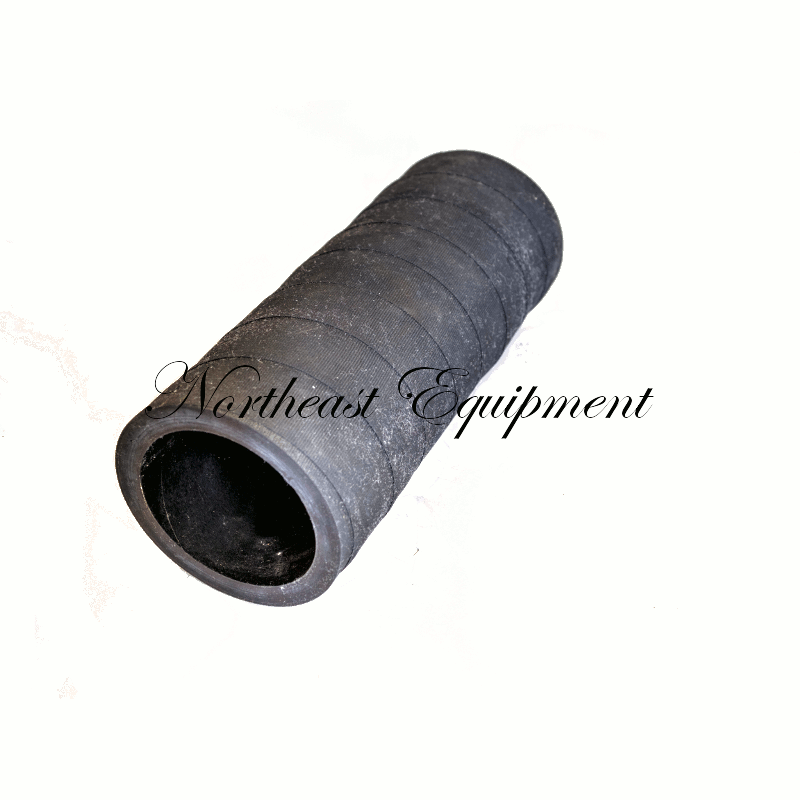

83073
83073 REX GEARBOX FRONT WATER INJECTION RUBBER SLEEVE
$15.50

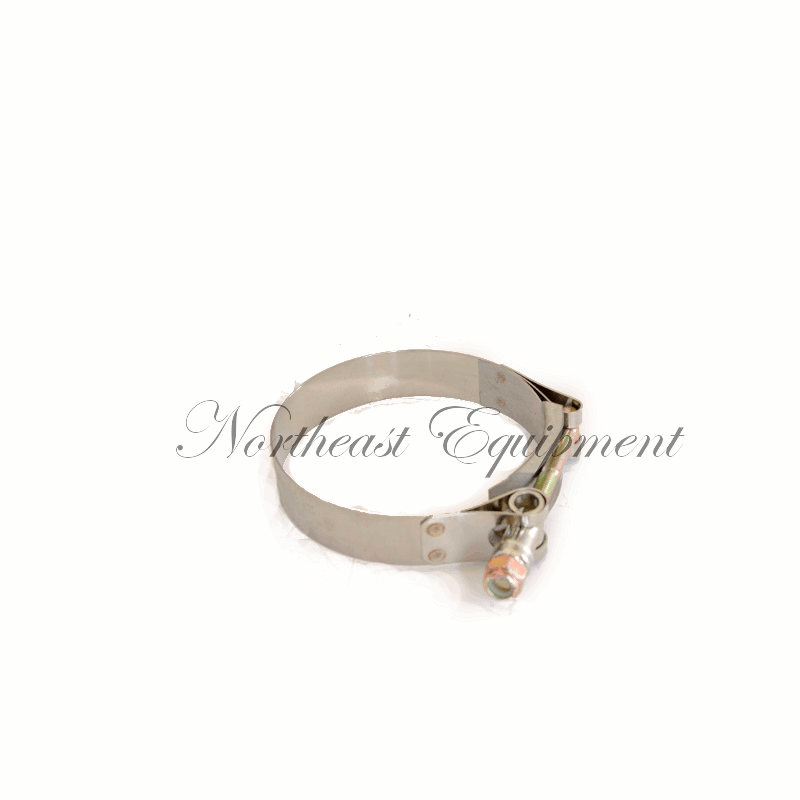

X7406, M-7135
X7406, M-7135 REX GEARBOX FRONT WATER INJECTION CLAMP, RUBBER SLEEVE
$6.53

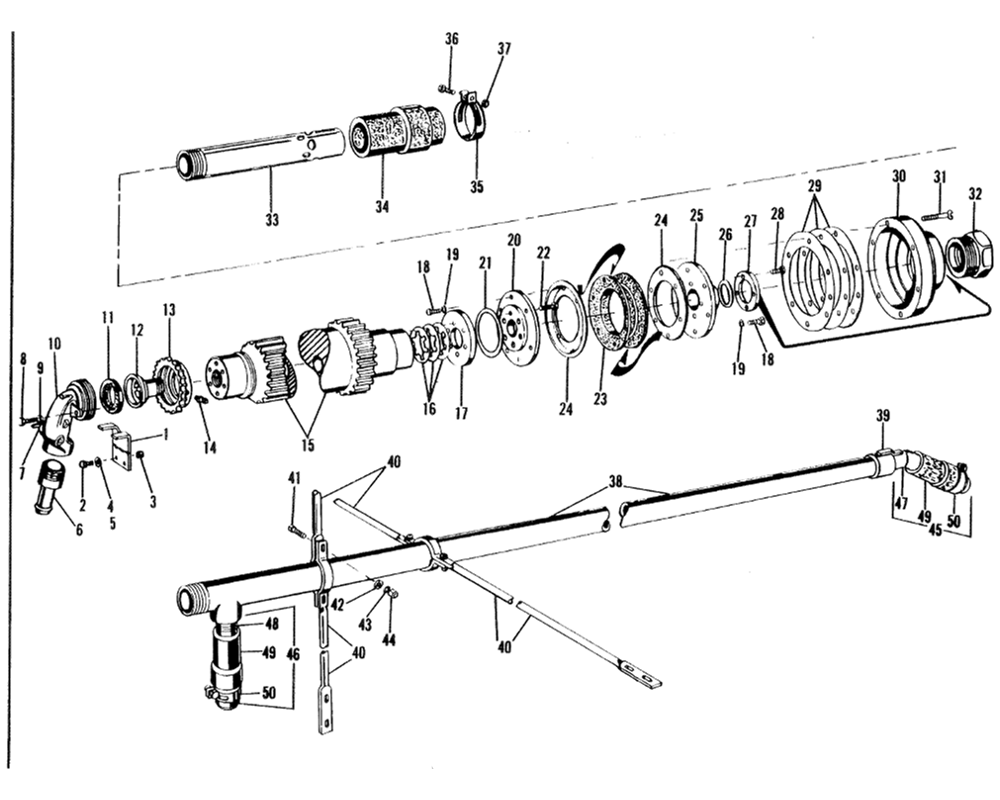

CLICK IMAGE FOR EXPANDED VIEW
| FRONT WATER INJECTION | ||||
|---|---|---|---|---|
| ITEM # | PART NUMBER | PART DESCRIPTION...... | KIT | QUANTITY |
| 1 | 102-10100-01 | LOCK-WATER INLET ELBOW | . | 1 |
| 2 | 398-02001-79 | HEX HEAD CAP SCREW | . | 2 |
| 3 | 398-11000-19 | HEX NUT | . | 2 |
| 4 | 398-20000-37 | LOCK WASHER | . | 2 |
| 5 | 398-20000-23 | WASHER | . | 2 |
| 6 | 298-04001-86 | FITTING | . | 1 |
| 6 | 398-14010-47 | REDUCER BUSHING | . | 1 |
| 7 | X5853 | DRAIN COCK | . | 1 |
| 8 | 398-02001-60 | HEX HEAD CAP SCRW | . | 1 |
| 9 | 398-11000-18 | HEX NUT | . | 1 |
| 10 | 402-01528-02 | WATER INLET ELBOW | . | 1 |
| 11 | 102-00747-01 | SEAL | . | 1 |
| 12 | 402-00695-02 | BRASS BUSHING | . | 1 |
| 13 | 402-01529-02 | CAP | . | 1 |
| 14 | 398-08000-07 | GREASE FITTING | . | 2 |
| 15 | 102-04742-01 | SHAFT | . | 1 |
| 16 | 102-09075-05 | SHIM-0.005" | . | 3 |
| 16 | 102-09075-07 | SHIM-0.007" | . | 3 |
| 16 | 102-09075-20 | SHIM-0.020" | . | 1 |
| 17 | 102-08993-01 | LOCK PLATE | . | 1 |
| 18 | 298-00092-93 | HEX HEAD CAP SCREW | . | 12 |
| 19 | 398-20000-37 | LOCK WASHER | . | 12 |
| 20 | 102-30517-01 | HUB-TORUS-OUTER | . | 1 |
| 21 | 102-01594-04 | "O"RING | . | 1 |
| 22 | 298-00005-93 | SOCKET HEAD CAP SCREW | . | 3 |
| 23 | 102-09787-01 | GLAND-TORUS | . | 1 |
| 24 | 102-09788-01 | CLAMP RING | . | 2 |
| 25 | 102-30516-01 | HUB-TORUS-INNER | . | 1 |
| 26 | 102-03547-68 | "O"RING | . | 1 |
| 27 | 102-09789-01 | RING RETAINER | . | 1 |
| 28 | 398-02076-10 | HEX HEAD CAP SCREW | . | 4 |
| 29 | 102-03299-05 | SHIM-0.005" | . | 3 |
| 29 | 102-03299-07 | SHIM-0.007" | . | 3 |
| 29 | 102-03299-20 | SHIM-0.020" | . | 2 |
| 30 | 402-01770-02 | COVER-DRUM HUB | . | 1 |
| 31 | 298-00093-93 | CAP SCREW | . | 6 |
| 32 | 398-14000-37 | REDUCING BUSHING | . | 1 |
| 33 | 502-01999-80 | WATER NOZZLE | . | 1 |
| 34 | 83073 | RUBBER SLEEVE | . | 1 |
| 35 | M-7135 | HOSE CLAMP | . | 1 |
| 36 | 298-00010-93 | HEX HEAD CAP SCREW | . | 1 |
| 37 | 298-00003-71 | HEX NUT | . | 1 |
